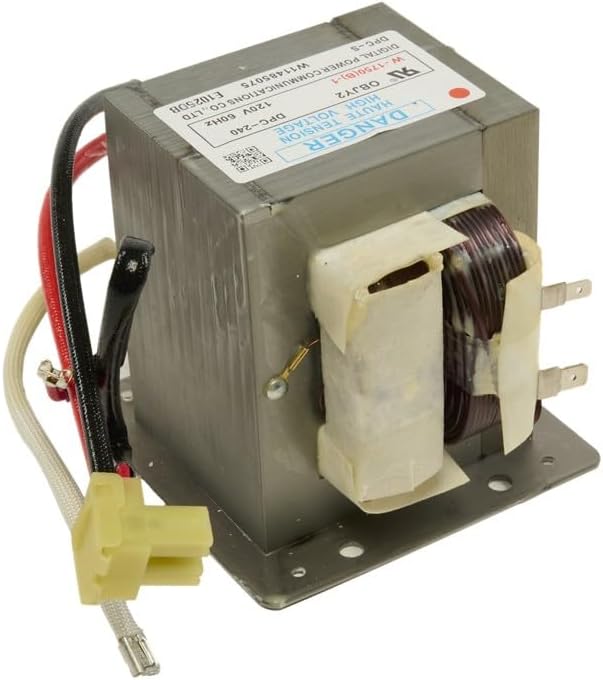

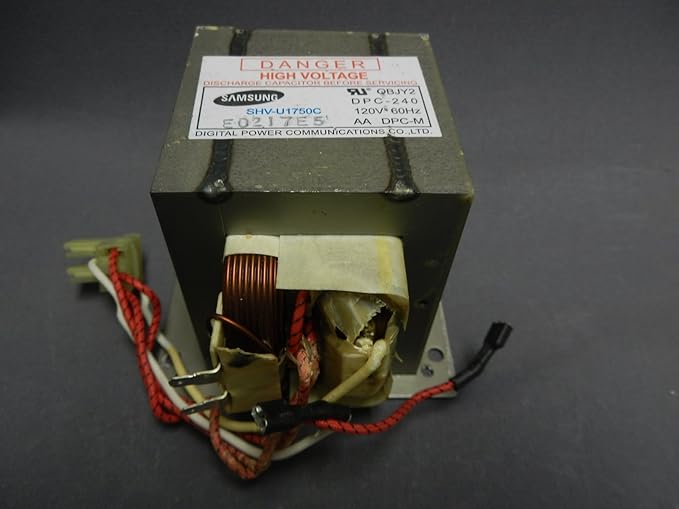

What is a Microwave Oven Transformer?
A Microwave Oven Transformer (MOT) is a vital element that is responsible for the magnetron’s power in the microwave. It allows it to generate the required high temperatures needed to cook food. The microwave transformer operates by increasing the standard household voltage to the thousands of volts that are required for the magnetron. Knowing the voltage of the microwave oven as well as its specifications is essential, especially to those interested about the way microwave transformers function and assessing the security of a microwave transformer. Although it’s primarily an appliance for home use there are some peoples who look into Microwave oven transformers for DIY projects. However caution is advised due to the dangers of high voltage.
How a Microwave Oven Transformer Works?
Transformers in microwave ovens operates through electromagnetic induction. It helps convert household voltage to the higher voltage required by the magnetron. The primary winding is able to produce low voltage, while the secondary winding generates many thousands of volts. Understanding the functions of a microwave converter assists in understanding its components and their function in ensuring food is effectively heated. Many consumers also look up microwave transformer troubleshooting voltage in order to make sure that the microwave oven transformer is safe and minimize risks while conducting tests or changing the transformer.
Types of Microwave Oven Transformer
1. Conventional High-Voltage Transformer
This is the standard and most widely utilized microwave cooker transformer. It increases the voltage of household appliances to a higher level than is required for the operation of the magnetron. They are heavy, easy to design, and are extensively employed in standard microwave ovens. Because of their huge market presence and the constant need for repairs, high-voltage transformers are usually accessible and readily available.
2. Inverter (High-Frequency) Transformer
This model is utilized in the modern models of inverter microwaves. It makes use of electronic circuits to offer an efficient and variable output power. Inverter transformers are less heavy and more sophisticated, but they aren’t as common on the market of replacements as compared to standard high-voltage transformers.
High-voltage microwave oven transformers are typically accessible due to their greater demand for repairs and replacements.
Technical Specifications
The microwave oven’s transformer is equipped with particular MOT voltage and power ratings that determine how it powers the magnetron. Most transformers feature a secondary output voltage of 2500 volts or higher, and the primary winding runs at a standard voltage for household use. Specifications for microwave transformers cover the nature of the insulation core and the capability for current.
The elements mentioned can influence the effectiveness and security of the microwave converter. Understanding the various parts of a microwave converter can assist to solve the problem or process. It is common for people to examine how microwave transformers function and their technical features before attempting repairs or DIY projects and while taking care to keep their children’s safety an absolute priority.
Top Microwave Oven Transformers in 2026
1) GE Appliances WB27X10971 HV Transformer
It is an OEM high voltage transformer that transforms 120V input into the 2,000+ voltages required from the magnetron. It is compatible with a variety of GE microwaves, including countertop and over-the-range models with the part number WB27X10971. It is found that microwaves are available in JVM along with JNM Series models. Always verify compatibility with the model number before replacing.
2) 6170W1D112R Microwave High-Voltage Transformer
The high voltage transformer (part 6170W1D112R) is an OEM replacement made specifically for GE microwave ovens as well as microwave oven combination units. It increases the primary voltage to the level required by the magnetron and capacitor circuit. It is compatible with GE models that have this part number – confirm the model of your choice prior to placing an order.
3) Samsung Electronics DE26-00129B Transformer
The OEM Samsung magnetic transformer is high voltage and powers the magnetron inside the various microwave ovens with standard settings. Compatible with various Samsung countertop and over-the-range models that require DE26-0129B. It ensures proper current regulation and heat efficiency. Not suitable for microwaves with an inverter type. Check the exact specifications of the model before replacing.
4) Samsung Electronics DE26-00122B Transformer
DE26-00122B is a replacement for the factory high-voltage transformer found in many Samsung microwave products. It boosts the line voltage in order to power up the capacitor circuit and magnetron. It typically fits old standard Samsung units. Always check your appliance version number in order to confirm the electrical and mounting compatibility.
5) Samsung Electronics DE26-00124A Transformer
The Samsung high-voltage transformer has been designed specifically for use in countertop and over-the-range microwave ovens. It offers steady high voltage to operate the magnetron in non-inverter appliances. Only compatible with models that list DE26-00124A as the replacement component. A proper installation requires safe charging of the capacitor.
6) Bosch 00145870 HV Transformer
Bosch 000145870 can be described as an OEM high-voltage transformer that is used in select Bosch built-in microwaves and over-the-range models. This transformer transforms a common voltage to a high output voltage to power an assembly of magnetrons. It is only compatible with Bosch units that specify part 00145870. Always confirm the compatibility of the serial port prior to conducting any repairs.
7) Whirlpool Corporation W10836753 Transformer
This is the original Whirlpool high-voltage transformer works with conventional microwave heating systems. Compatible with a few models from Whirlpool, KitchenAid, and Maytag. The models are identified with the model number W10836753.This will ensure that the proper voltage is provided to the magnetron, as well in the capacitor. Check the list of the model you have to verify compatibility with the other brands that are available in Whirlpool appliance home.
8) Whirlpool Corporation W11545871 Transformer
W11545871 is a brand-new Whirlpool microwave transformer upgrade. It is compatible with specific over-the-range and countertop models that need the exact model number. It is designed for traditional high-voltage equipment, not for inverter technology. Always verify the wattage class and production series before placing an order to ensure that the electrical specifications are in line.
9) Frigidaire 534464075 HV Transformer
Frigidaire 534464075 is the OEM high-voltage transformer utilized for certain Frigidaire as well as Electrolux microwaves. It increases the output voltage to enable the magnetron to operate efficiently and securely. It is compatible only with units displaying as the specified replacement part.The Frigidaire HV Transformer will require a professional installation due to its voltage.
Common Issues & Troubleshooting
The transformer of the microwave can create issues for the efficiency of the appliance. Most common problems are not heating, unusual sounding humming, or the blowing of fuse. Understanding the operation of a microwave transformer can help in identifying the problems. Examining the Microwave oven transformer’s voltage as well as looking at the secondary and primary windings could reveal problems. Many people look for advice to troubleshoot microwave transformers in an attempt to identify the cause of their problems. Follow the rules to stay secure when working with the microwave transformer or conducting tests in a manner that isn’t secure, because DIY repairs can pose an opportunity for injury due to risks posed by high voltage.
Safety Precautions
The following safety guidelines apply to Microwave Oven Transformers that are essential to know about
- Make sure to unplug the microwave prior to conducting any inspections or handling of your microwave’s transformer (MOT).
- Pay attention to the close contact between the primary winding and the secondary to protect yourself from electrocution.
- Discover how microwave transformers operate prior to tackling diy repairs.
- Make sure to use protective equipment and tools during the process of testing or installing your MOT.
- Be sure to follow all guidelines for the safety of microwave transformers to avoid injuries.
- Don’t attempt experiments that require high voltage without the guidance of a professional — MOTs are very dangerous.
Keep these guidelines in your concern for the safety, as Microwave oven transformers are highly voltage devices, so proper safety and guidance are crucial.
Replacement & Maintenance
The replacement of a microwave oven transformer must be done with care by following the correct standards for voltages in MOT. Check out the components in the microwave converter, and make sure that the replacement is compatible with the specifications for the transformer originally used. Regular maintenance, including the examination of burned windings or strange sounds, could prolong the lifespan the transformer. Many customers seek out troubleshooting techniques for microwave transformers prior to replacement to identify the problem. Always follow the safety rules when you install the replacement for your Microwave oven transformer. An appropriate approach to dealing with, checking and conformity to standards regarding voltage is crucial to ensure that the microwave functions with no hiccups and safely.
How to Choose the Best Microwave Oven Transformer?
A working microwave oven transformer (MOT) assures you that the equipment that you’re using is reliable and reliable. The first step is to examine the voltage and power of the MOT in order to be sure it’s compliant with the specifications of the microwave. Consider the kind of Microwave oven transformer you’d like to choose from inverter standard for MOT, the traditional MOT regular MOT or the high-power/customized MOT based on whether it’s intended to be used at home or for particular uses.
Examine what the specs of the microwave inverter like the insulation, the material used for the core, as well as its longevity. It is essential to protect your family members by selecting models with the correct certifications. It is also important to look over reviews from users and other reviews about performance to be sure of the reliability. Selecting the most suitable Microwave oven transformer will help in the repair, troubleshooting and safe DIY projects as well as ensuring the highest microwave performance.
Industry & Regulatory Notes
Microwave Oven Transformers (MOTs) have to meet standards of the industry to ensure safety and dependability. Manufacturers must adhere to the strictest specifications for microwave transformers, which include the insulation class and voltage ratings along with the main components. The certifications issued by the authorities responsible for regulation like UL and CE certifications, prove that the Microwave oven transformer complies with the safety standards. Proper labeling helps consumers identify compliant units. Recycling and the disposal of old MOTs are controlled to avoid environmental hazards. The guidelines and specifications regarding the safety of microwave oven transformers can guarantee the safety of operation of the transformer and also protect them from harms posed by the high voltage.
FAQ’s
Q1: What is the maximum voltage you obtain the output of a electromagnetic transformer?
The Majority of microwave oven transformers (MOTs) generate about 2000 volts via their secondary winding that provides power to the magnetron.
Q2: Is a microwave converter able to be used to create DIY projects?
A: While a few experimenters are exploring DIY ways to use their tools, high voltage dangers can be dangerous if not handled with know-how.
Q3: What are the primary kinds of transformers for microwave ovens?
Two types of MOTs are custom or high-power and inverter (High-Frequency) Transformer.
Q4: How can I tell when my MOT has failed?
A: Search for no unusual humming or burnt smells. Be sure to follow the guidelines on safety in the use of microwave transformers.
Q5: What’s the distinction of a MOT Transformer versus the ordinary transformer?
The MOT has been specifically developed to supply high-voltage and current output, which is specifically designed for microwaves, which is in contrast typical transformers designed for home use.
Conclusion
A microwave’s transformer (MOT) is an essential component that powers your microwave which allows you to cook efficiently with a high voltage output. Understanding how a microwave functions using its components, MOT voltage, as well as the distinctions between inverter and custom models will help you make best choices when it comes to installing, troubleshooting and replacing. Be sure to follow the safety guidelines when testing, inspecting or working with the MOT, by understanding the specifications for microwave oven transformers and maintenance guidelines to ensure lasting performance.
